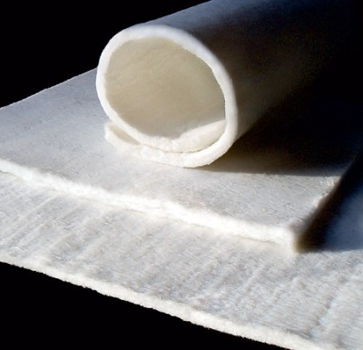

Cryogel product line
Cryogel product line

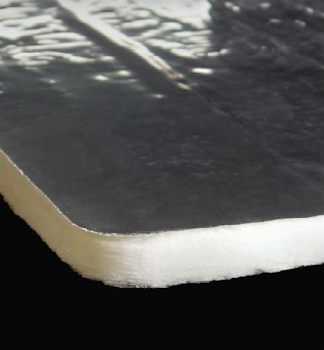

Cryogel Z
Cryogel Z

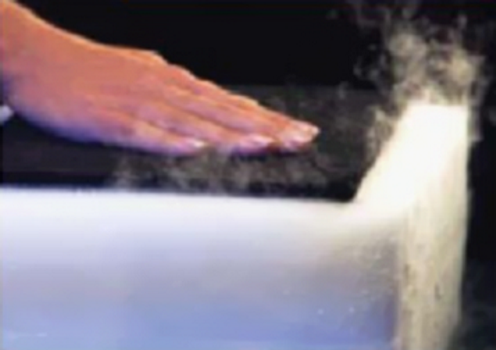

Thermal performances
Thermal performances

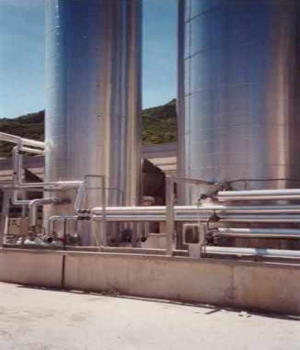

Industrial plant
Industrial plant

Description and technical specifications

Cryogel is an aerogel blanket reinforced with polyethylene terephthalate (PET) or polyester fibres and fibreglass continuous filament.
It’s an aerogel impregnated geosynthetic nonwoven felt with a bulk density of 130 Kg/m³ and available in a 5 and 10 mm thicknesses; Cryogel "Z" version comes with a factory-applied integral vapour barrier made by aluminium foil.
It’s designed for use on mid to low temperature applications such as industrial cryogenic fields and cold chains throughout the logistic areas with operating temperatures in the range from -200°C to +90°C; the upper limit for the "Z" version is set at +90°C.

Product Code Thickness
CG 5201 5 mm
CG 0590 Z 5 mm
CG 10201 10 mm
CG 1090 Z 10 mm
Physical Property Value
Available Thicknesses 5 e 10 mm
Operating temperature range -200°C +200°C
-200°C +90°C (Cryogel Z)
Colour White
Hydrophobic Yes
Density 130 Kg/m3
Coefficient of Linear Thermal Expansion
[ASTM E228]
(Da -160°C a +20°C)
13,1 x 10-6 / °C
Thermal conductivity λ at 0°C
[ASTM C177]
0,014 W/mK
Compressive strength
[ASTM C165]
53-130 KPa at 10-25%

Technical specifications

For any additional specifications, not included in the above prospectus, please contact our offices. Specific test certificates and documentation available upon request.

Cryogel line aerogels are easy workable, they can be cut using conventional textile cutting tools including scissors, razor knives, electric scissors and punching machines.

The material is provided per square meter, rolled up and wrapped on a pallet, anytime ready, in case of need, to be cut and used.

Product width is 1440 mm. (this value may vary depending on production lot and thickness)
